Carbon Molecular Sieve for Gas Separation: An In - Depth Exploration

1. Introduction to Carbon Molecular Sieves

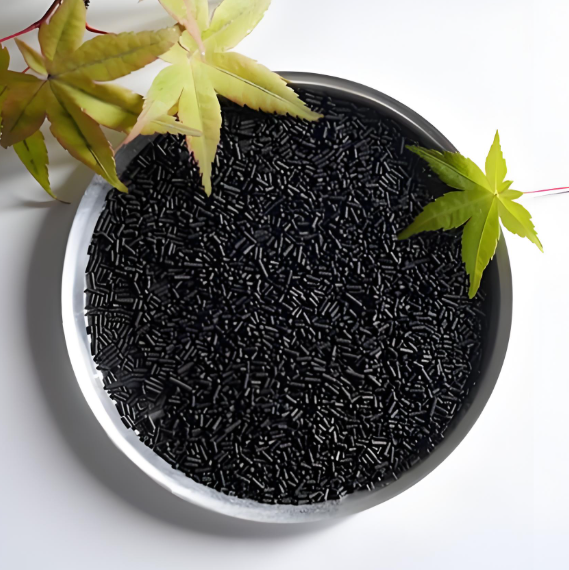

Carbon molecular sieves (CMS) emerged as a novel type of adsorbent in the 1970s. They are excellent non - polar carbonaceous materials. The main component of carbon molecular sieves is elemental carbon. These sieves are designed to utilize the sieving characteristic to separate different gases, particularly oxygen and nitrogen from the air.

When it comes to the structure of carbon molecular sieves, during the process of adsorbing impurity gases, the large and medium - sized pores mainly serve as channels. Their function is to transport the molecules to be adsorbed into the micropores and sub - micropores, which are the actual sites where adsorption occurs.

2. Working Principle of Carbon Molecular Sieves in Gas Separation

The ability of carbon molecular sieves to separate air depends on different factors. It could be the different diffusion rates of various gases in the air within the micropores of the carbon molecular sieve, or different adsorption forces, or sometimes both effects work simultaneously.

For instance, in the PSA (Pressure Swing Adsorption) - N2 refining device, the principle is fully applied. The raw material gas contains a certain amount of oxygen. Based on the real - time oxygen content detected through continuous monitoring, the amount of hydrogen mixed into the raw material gas is adjusted. A specially - designed mixing device and a precise hydrogen control system are used to minimize the excess hydrogen. The mixed gas then enters a catalytic reactor, where hydrogen reacts exothermically with oxygen to form water vapor. After passing through a post - cooler, most of the water vapor condenses, and the condensed water is removed by a water separator. Subsequently, according to the required dew - point of the product gas, a refrigerated dryer or an adsorption - type dryer is used for drying. A refrigerated dryer can achieve a product gas with an atmospheric dew - point of - 25℃, while an adsorption - type dryer is needed when the dew - point is lower than - 40℃. The purity of the product gas is continuously monitored by an oxygen analyzer. If the purity is lower than the customer's requirement, the gas is vented. The whole system operates automatically without the need for manual operation.

3. Advantages of Using Carbon Molecular Sieves for Gas Separation

Cost - effectiveness

Compared with the traditional cryogenic high - pressure nitrogen production process, the nitrogen production process using carbon molecular sieves at normal temperature and low pressure has many cost advantages. It requires less investment. The equipment for the cryogenic process is usually large - scale and complex, which needs a huge initial investment. In contrast, the PSA system with carbon molecular sieves has a relatively simple structure, reducing the construction cost.

High Efficiency

The nitrogen production speed is much faster. The traditional cryogenic process needs to cool the air to extremely low temperatures, which is a time - consuming process. The PSA process with carbon molecular sieves can quickly adsorb oxygen and other impurities at normal temperature, thus rapidly obtaining nitrogen - rich gas. This high - speed production can meet the urgent needs of industries in a short time.

Low Nitrogen Cost

The cost of producing nitrogen using carbon molecular sieves is lower. The energy consumption of the normal - temperature and low - pressure process is significantly less than that of the cryogenic high - pressure process. Also, the maintenance cost of the PSA system is relatively low, contributing to the overall reduction of nitrogen production cost.

4. Applications of Nitrogen Obtained by Carbon Molecular Sieves in Different Industries

Chemical Industry

In the chemical industry, nitrogen is widely used. For example, in the production of chemical products, nitrogen can be used as a protective gas to prevent oxidation of reactants or products. It can also be used in the regeneration process of catalysts. Many chemical reactions are sensitive to oxygen, and the high - purity nitrogen obtained by carbon molecular sieves can provide a stable and oxygen - free environment for these reactions.

Petroleum and Natural Gas Industry

In the petroleum and natural gas industry, nitrogen is used for various purposes. It can be used for the storage of natural gas. By filling nitrogen in natural gas storage tanks, the risk of explosion can be reduced. Also, in the process of oil extraction, nitrogen can be injected into oil wells to increase the pressure, which helps to improve the oil recovery rate.

Electronics Industry

In the electronics industry, nitrogen is an essential protective gas. During the production of large - scale integrated circuits, color TV picture tubes, electronic components, and semiconductors, nitrogen is used to prevent oxidation and contamination. For example, in the semiconductor manufacturing process, any trace of oxygen may cause defects in the semiconductor chips. The high - purity nitrogen produced by carbon molecular sieves can ensure the high - quality production of these electronic products.

Food Industry

In the food industry, nitrogen is used for the preservation and storage of food, fruits, grains, tea, and Chinese herbal medicines. By filling nitrogen in food packaging, the oxygen in the package can be removed, which inhibits the growth of aerobic bacteria and the oxidation of food, thereby extending the shelf - life of food. For example, many snack foods are packaged with nitrogen to keep them fresh and crisp.

Other Industries

In the coal industry, nitrogen can be used for mine fire prevention. Injecting nitrogen into the coal mine can reduce the oxygen concentration in the mine, thereby preventing the occurrence of coal spontaneous combustion. In the metal heat - treatment industry, nitrogen - based treatment can improve the mechanical properties of metals. In the cable industry, nitrogen can be used for cable insulation treatment. In the transportation and storage of some special substances, nitrogen can also be used as a protective gas to ensure safety.

5. Market Analysis of Carbon Molecular Sieves for Gas Separation

Domestic Market

In the domestic market, carbon molecular sieves have a large - scale application. Many domestic manufacturers have a long - term history of producing carbon molecular sieves. For example, Yancheng Jiutian Carbon Molecular Sieve Factory has nearly 20 years of technical accumulation and talent in domestic research and production of carbon molecular sieves. The products of domestic manufacturers are gradually being recognized by domestic and foreign large - and medium - sized nitrogen - making industries. With the continuous development of domestic industries such as chemical, electronics, and food, the demand for carbon molecular sieves is also increasing.

International Market

Internationally, the demand for carbon molecular sieves is also on the rise. As more and more countries pay attention to environmental protection and energy - saving, the PSA nitrogen - making technology using carbon molecular sieves, which is cost - effective and energy - saving, is favored. Some domestic manufacturers are also trying to enter the international market. For example, Yancheng Jiutian Carbon Molecular Sieve Factory has signed cooperation intention agreements with several foreign companies, aiming to expand its market share through technological strength.

6. Future Development Trends and Challenges of Carbon Molecular Sieves for Gas Separation

Development Trends

In the future, the performance of carbon molecular sieves is expected to be further improved. Scientists may develop carbon molecular sieves with more uniform pore size distribution, which can improve the separation efficiency and selectivity. Also, with the development of new materials and technologies, the combination of carbon molecular sieves with other materials may create new types of composite adsorbents, expanding their application scope.

Challenges

However, there are also some challenges. One of the challenges is the competition from other gas - separation technologies. For example, membrane separation technology is also developing rapidly. These competing technologies may pose a threat to the market share of carbon molecular sieves. Another challenge is the environmental requirements. The production process of carbon molecular sieves may generate certain pollutants, and manufacturers need to continuously improve the production process to meet the increasingly strict environmental protection standards.

In conclusion, carbon molecular sieves for gas separation have significant advantages and wide applications. Although they face some challenges, with continuous technological innovation and market expansion, they will still play an important role in the field of gas separation in the future.
